PVC kanál Odbočka 45° KGEA 110 / 110
Kód: W3024154
95% sortimentu skladom
U nás sa nečaká. Väčšinu tovaru odosielame do 24 h.
Doprava zadarmo od 300€
Objednajte nad 300 € s DPH a tovar vám doručíme.
Poradenstvo pri výbere
Pomôžeme vám vybrať presne to, čo potrebujete.
Podrobný popis

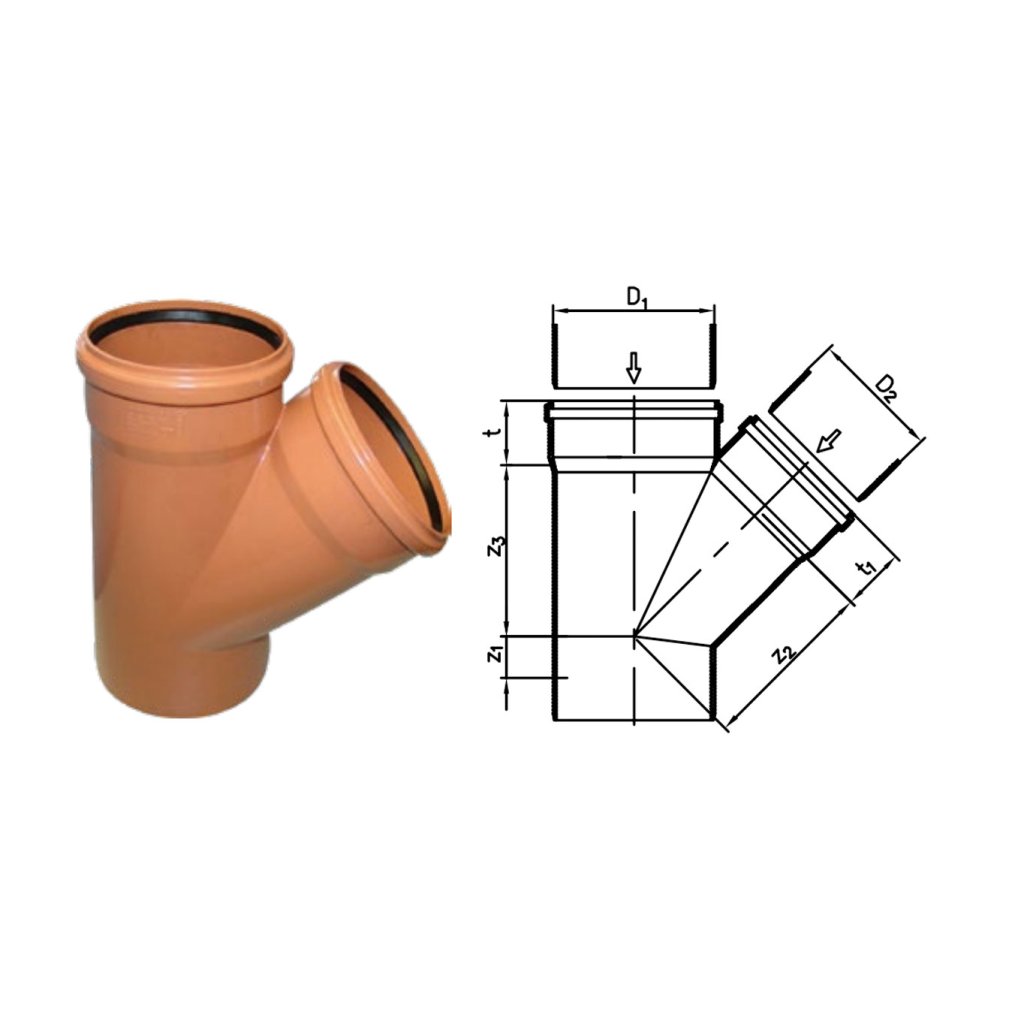

| DN/OD D1 |
DN/OD D2 |
z1 mm |
z2 mm |
z3 mm |
t mm |
t1 mm |
KÓD |
|---|---|---|---|---|---|---|---|
| 110 | 110 | 26 | 134 | 134 | 76 | 76 | SF660000W |
| 125 | 110 | 18 | 144 | 141 | 82 | 76 | SF661000W |
| 125 | 125 | 29 | 152 | 152 | 82 | 82 | SF661100W |
| 160 | 110 | 2 | 168 | 159 | 100 | 76 | SF662000W |
| 160 | 125 | 13 | 176 | 169 | 100 | 82 | SF662100W |
| 160 | 160 | 37 | 194 | 194 | 100 | 100 | SF662200W |
| 200 | 110 | -16 | 195 | 179 | 120 | 76 | SF663000W |
| 200 | 125 | -5 | 203 | 190 | 120 | 82 | SF663100W |
| 200 | 160 | 18 | 221 | 215 | 120 | 100 | SF663200W |
| 200 | 200 | 45 | 242 | 242 | 120 | 120 | SF663300W |
| 250 | 110 | -37 | 228 | 206 | 140 | 76 | DF664000W |
| 250 | 125 | -27 | 236 | 217 | 140 | 82 | DF664100W |
| 250 | 160 | -3 | 254 | 241 | 140 | 100 | DF664200W |
| 250 | 200 | 24 | 274 | 268 | 140 | 120 | DF664300W |
| 250 | 250 | 57 | 301 | 301 | 140 | 140 | DF664400W |
| 315 | 110 | -57 | 328 | 300 | 160 | 76 | DF665000W |
| 315 | 125 | -37 | 338 | 300 | 160 | 82 | DF665100W |
| 315 | 160 | -19 | 360 | 325 | 160 | 100 | DF665200W |
| 315* | 200 | 6 | 373 | 340 | 160 | 120 | DF665300W |
| 315 | 250 | 39 | 390 | 408 | 160 | 140 | DF665400W |
| 315 | 315 | 83 | 375 | 432 | 160 | 160 | DF665500W |
| 400 | 110 | -70 | 385 | 365 | 190 | 76 | DF666000W |
| 400 | 160 | -53 | 413 | 368 | 190 | 100 | DF666200W |
| 400 | 200 | -25 | 435 | 400 | 190 | 120 | DF666300W |
| 400 | 250 | 10 | 458 | 465 | 190 | 140 | DF666400W |
| 400 | 315 | 42 | 505 | 482 | 190 | 160 | DF666500W |
| 400 | 400 | 122 | 565 | 512 | 190 | 190 | DF666600W |
| 500 | 110 | -110 | 460 | 402 | 220 | 76 | DF667000W |
| 500 | 160 | -70 | 490 | 482 | 220 | 100 | DF667200W |
| 500 | 200 | -63 | 510 | 475 | 220 | 120 | DF667300W |
| 500 | 250 | 2 | 528 | 550 | 220 | 140 | DF667400W |
| 500 | 315 | 22 | 598 | 560 | 220 | 160 | DF667500W |
| 500 | 400 | 69 | 613 | 637 | 220 | 190 | DF667600W |
| 500 | 500 | 95 | 708 | 670 | 220 | 220 | DF667700W |
* Podľa normy ČSN EN 13476-2 (SN8)
